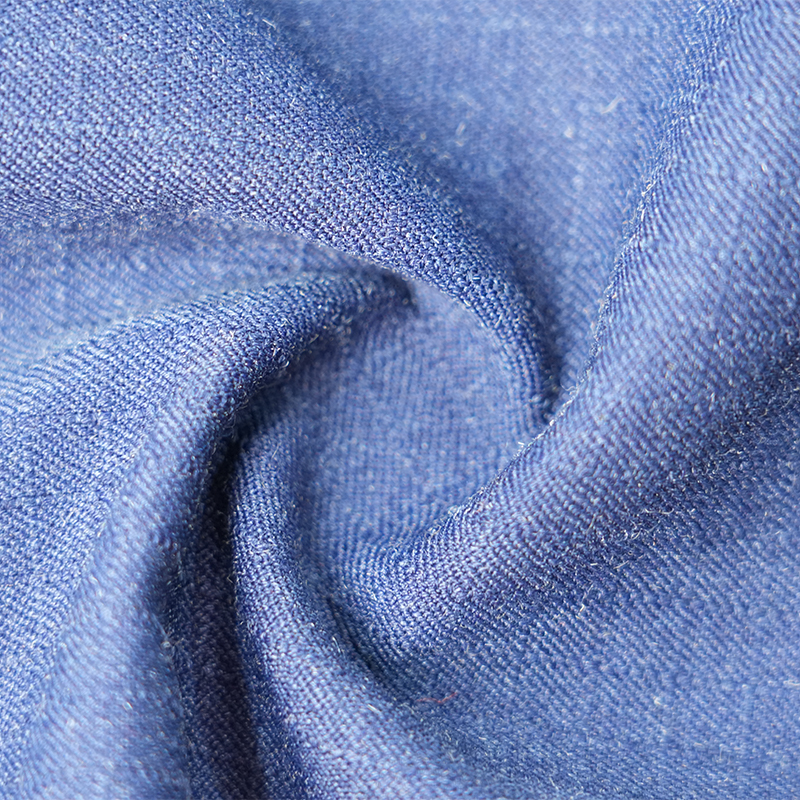

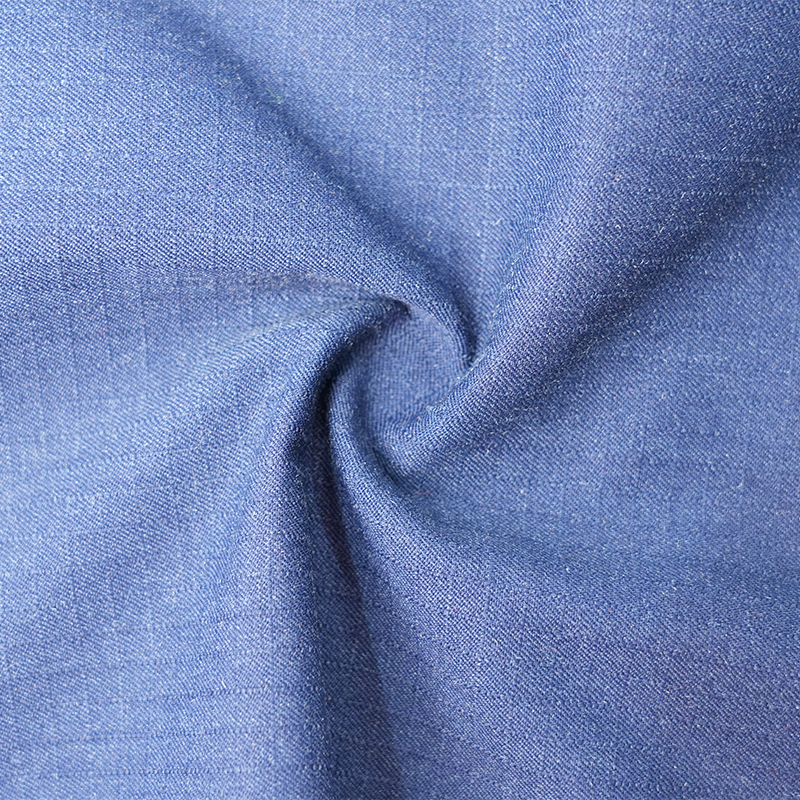

QFU-04A Twill/ripstop Electric Arc Protection FR fabric

Twill/ripstop Electric Arc Protection FR fabric: Comprehensive analysis of technology and application

In the field of modern industrial safety protection, the development of special protective fabrics is changing with each passing day. Among them, twill/ripstop Electric Arc Protection FR fabric has become an indispensable safety barrier for high-risk industries such as electricity, petrochemicals, and fire protection due to its unique structural design and excellent protection performance.

The importance of twill arc protection FR fabric

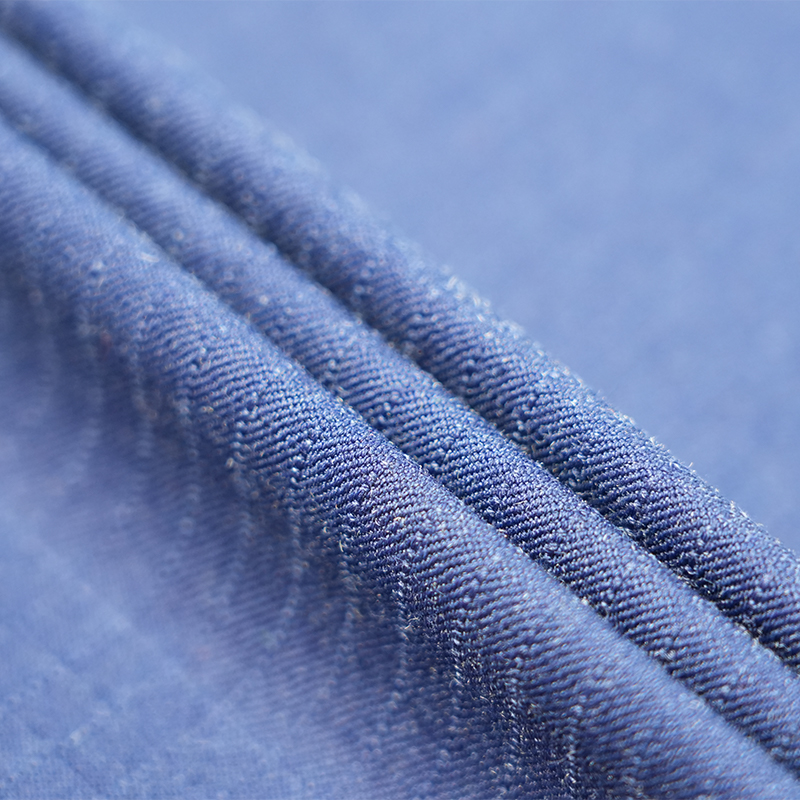

Twill arc protection FR fabric is a special textile made of a special twill structure combined with high-performance flame-retardant fibers. It is designed to protect against instantaneous high temperature, flames and mechanical damage caused by arc accidents. The twill weave method makes the surface of the fabric present obvious diagonal lines. This structure not only gives the fabric a unique appearance, but more importantly, it significantly improves the tear resistance and durability of the fabric. Compared with plain or satin structures, the twill structure achieves higher structural stability and mechanical strength through the staggered arrangement of warp and weft yarns.

Arc accidents are one of the most deadly safety threats in the power industry. According to international electrical safety standards, an arc is a high-temperature plasma formed when an electric current passes through air or other insulating media. Its temperature can reach tens of thousands of degrees Celsius, and it can release huge heat energy and light radiation in an instant. Such extreme conditions can not only cause severe burns, but may also trigger explosive shock waves.

The core value of twill/tear-resistant arc flame-retardant fabrics lies in that they simultaneously solve three major protection needs:
Arc protection: through the selection and structural design of flame-retardant fibers, resist instantaneous high-temperature thermal radiation
Mechanical protection: twill structure and special fibers give the fabric excellent tear resistance and wear resistance
Comfortable to wear: While ensuring protective performance, it also takes into account breathability, flexibility and freedom of movement
This type of fabric has been widely used in arc protective clothing, fire protection clothing, petrochemical industry work clothes, and military protective equipment, and has become an important technical equipment to protect the lives of people working in high-risk industries.

Technical parameters and performance standards
The excellent performance of twill/tear-resistant arc flame-retardant fabrics is reflected in a series of strict technical parameters, which not only determine the protection level of the fabric, but also directly affect the use scenario and life of the terminal product. Understanding these key technical indicators is essential for the correct selection and application of this type of fabric.

Excellent wear resistance
The twill structure gives the fabric excellent mechanical properties, which is an important feature that distinguishes it from ordinary flame-retardant fabrics. In terms of tear resistance, twill arc-proof fabrics perform well, and the warp and weft tear strengths are usually ≥20N.
Abrasion resistance is essential for the long-term use of work clothes. The twill structure significantly improves the wear resistance of the fabric by increasing the yarn interlacing points and surface texture.
